What is a Cutter Suction Dredger?

A Cutter Suction Dredger, commonly called a CSD, is a dredging vessel designed to remove sand, clay, silt, gravel, and other seabed materials.

At the front of the dredger is a rotating cutter head. The cutter breaks or loosens the seabed material while a powerful dredge pump sucks the material into a suction pipe.

The dredged material is then transported through floating or land pipelines to a disposal area, reclamation site, or storage lagoon.

Unlike hopper dredgers, a Cutter Suction Dredger usually stays in one working area and moves slowly using spuds and swing wires while dredging.

Why is a Cutter Suction Dredger Important?

Many rivers, ports, and navigation channels become shallow because sand and sediment build up over time.

A Cutter Suction Dredger removes this material and restores the required water depth.

It is also used to create new land, deepen harbours, prepare offshore construction sites, and excavate canals.

Because of its powerful cutter head, it can work in harder soils where other dredgers may not perform efficiently.

How Does a Cutter Suction Dredger Work?

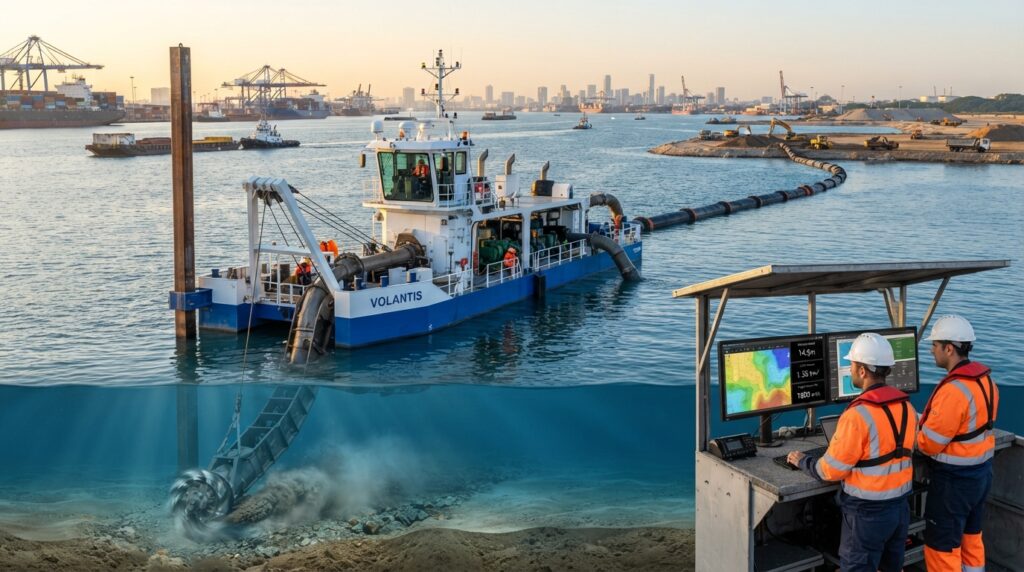

A Cutter Suction Dredger is positioned at the work site using spuds and swing anchors.

The rotating cutter head loosens the seabed while the suction pipe draws the material into the dredge pump.

The pump mixes the material with water to form a slurry.

The slurry is then transported through discharge pipelines to the required destination.

As the dredger swings from left to right, it cuts the seabed layer by layer until the required depth is achieved.

Main Parts of a Cutter Suction Dredger

A Cutter Suction Dredger usually includes:

• Cutter Head
• Cutter Drive
• Suction Pipe
• Dredge Pump
• Discharge Pipeline
• Spud System
• Swing Winches
• Swing Wires
• Hydraulic Power Unit
• Diesel Engines
• Generator
• Operator Cabin
• GPS/GNSS Positioning System
• Survey Computer
• Draft Sensors
• Flow Meter
• Density Meter

Each component works together to achieve safe and efficient dredging.

Where is a Cutter Suction Dredger Used?

A Cutter Suction Dredger is commonly used for:

• Port Construction
• Harbour Deepening
• Navigation Channel Maintenance
• Land Reclamation
• River Dredging
• Canal Construction
• Offshore Construction
• Beach Nourishment
• Industrial Waterways
• Mining Projects

Types of Materials a CSD Can Dredge

A Cutter Suction Dredger can remove:

• Sand
• Silt
• Clay
• Soft Rock
• Gravel
• Mud
• Compact Soil
• Weathered Rock

The type of cutter head and installed power determine how hard the material can be excavated.

Advantages of a Cutter Suction Dredger

A Cutter Suction Dredger can dredge continuously, handle large volumes of material, work in compact soils, and pump dredged material directly to reclamation or disposal areas. It provides high production rates and is widely used on large marine construction projects.

Common Applications

A Cutter Suction Dredger is widely used for:

• Capital Dredging
• Maintenance Dredging
• Land Reclamation
• Port Expansion
• Offshore Infrastructure
• River Improvement
• Flood Control
• Coastal Protection
• Canal Excavation
• Industrial Development

Frequently Asked Questions

Can a Cutter Suction Dredger work in hard soil?

Yes. Its rotating cutter head is designed to loosen compact soil, clay, and some soft rock before the material is pumped away.

Does a Cutter Suction Dredger store dredged material onboard?

No. The dredged material is usually pumped through discharge pipelines directly to the disposal or reclamation area.

Is a Cutter Suction Dredger suitable for land reclamation?

Yes. It is one of the most commonly used dredgers for land reclamation because it can continuously pump dredged material to the reclamation site.

Conclusion

A Cutter Suction Dredger is one of the most efficient dredging vessels used in marine construction. Its rotating cutter head and powerful pumping system allow it to excavate and transport large amounts of seabed material safely and efficiently. It plays an important role in port development, land reclamation, river improvement, and offshore engineering projects.
