What is a Single Beam Echo Sounder?

A Single Beam Echo Sounder, often called SBES, is an instrument used to measure the depth of water below a survey boat.

The instrument sends a sound pulse straight down through the water. When the sound reaches the riverbed or seabed, it bounces back to the transducer. The Echo Sounder measures the travel time of the sound wave and calculates the water depth.

The collected depth data is combined with GPS positions to create accurate depth profiles and hydrographic survey maps.

Because it is simple, reliable, and easy to operate, the Single Beam Echo Sounder is widely used for many marine surveying projects.

Why is a Single Beam Echo Sounder Important?

Before any marine construction, dredging, bridge construction, or navigation project begins, engineers need accurate information about the water depth.

A Single Beam Echo Sounder helps surveyors identify shallow areas, navigation channels, underwater slopes, and changes in the river or seabed.

This information supports safe navigation and better project planning.

How Does a Single Beam Echo Sounder Work?

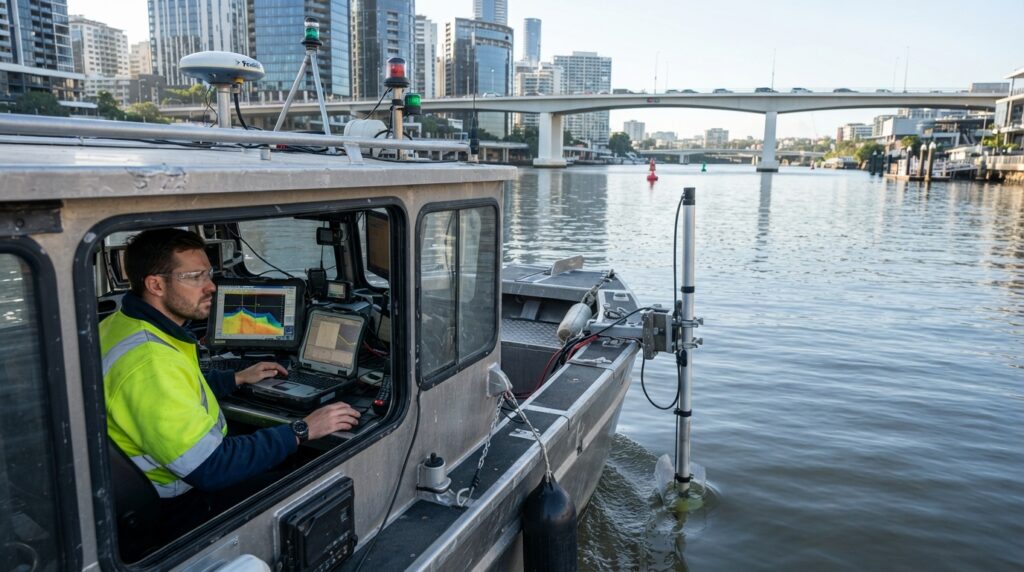

The Echo Sounder is installed on a survey vessel or survey boat.

A transducer mounted below the boat sends a sound pulse directly toward the bottom.

The sound wave reflects from the seabed and returns to the transducer.

The instrument measures the travel time of the sound wave and automatically calculates the depth.

The depth is recorded together with GPS coordinates, allowing surveyors to create accurate hydrographic charts.

Main Parts of a Single Beam Echo Sounder

A typical Single Beam Echo Sounder system includes:

• Echo Sounder Unit
• Transducer
• GNSS Receiver
• Survey Computer
• Data Acquisition Software
• Power Supply
• Mounting Pole or Bracket

Each component works together to collect accurate depth information.

Where is a Single Beam Echo Sounder Used?

Single Beam Echo Sounders are commonly used for:

• Hydrographic Surveys
• River Surveys
• Canal Surveys
• Lake Surveys
• Reservoir Surveys
• Dredging Surveys
• Bridge Projects
• Port Development
• Navigation Channel Surveys
• Water Resource Projects

Advantages of a Single Beam Echo Sounder

A Single Beam Echo Sounder is simple to use, provides reliable depth measurements, works well in shallow and inland waters, requires less equipment than advanced sonar systems, and is a cost-effective solution for many hydrographic survey projects.

Single Beam Echo Sounder vs Multibeam Echo Sounder

A Single Beam Echo Sounder measures depth directly below the survey vessel using one sound beam.

A Multibeam Echo Sounder sends many sound beams at the same time, allowing it to map a much wider area of the seabed.

Single Beam systems are commonly used for routine depth surveys, while Multibeam systems are preferred when detailed seabed mapping is required.

Common Applications

A Single Beam Echo Sounder is commonly used for:

• Bathymetric Surveys
• River Mapping
• Dredging Monitoring
• Waterway Maintenance
• Dam Surveys
• Irrigation Projects
• Environmental Surveys
• Coastal Engineering

Frequently Asked Questions

Can a Single Beam Echo Sounder measure the entire seabed?

No. It measures the depth directly below the survey boat. To cover a larger area, the survey vessel follows planned survey lines across the water.

Can it be used in rivers and lakes?

Yes. Single Beam Echo Sounders are widely used in rivers, lakes, canals, reservoirs, and coastal waters.

Is it suitable for beginners?

Yes. It is one of the easiest hydrographic survey instruments to learn and operate.

Does it work without GPS?

It can measure depth without GPS, but accurate positioning is needed to create useful hydrographic maps. For this reason, it is normally used together with a GNSS receiver.

Conclusion

A Single Beam Echo Sounder is one of the most widely used instruments in hydrographic surveying. It provides reliable water depth measurements by sending sound waves to the bottom and measuring the returning echo. Its simple operation, dependable performance, and cost-effective design make it an excellent choice for river surveys, dredging projects, and many other marine engineering applications.
